Insulative materials prevent or limit the flow of electrons across their surface or through their volume. Insulative materials have a high electrical resistance and are difficult to ground. Static charges remain in place on these materials for a very long time. Insulative materials are defined as those having a surface resistivity of at least 1 x 1012 Ω/sq or a volume resistivity of at least 1 x 1011 Ω-cm. ESD Materials Categories Materials for protection and prevention of electrostatic discharge can be categorized into three distinct groups - separated by their ranges of conductivity to electrical charges.

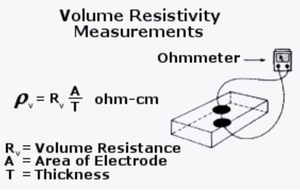

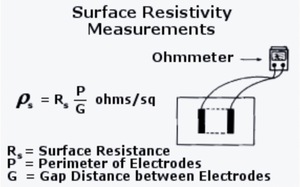

Resistivity generally between 103 and 105 ohms per square. No initial charges, provides path for charge to bleed off. Usually carbon-particle or carbon-fiber filled throughout. Resistivity Test Methods Surface ResistivityFor thermoplastic materials intended to dissipate electrostatic charges, surface resistivity is the most common measurement of a material's ability to do so. A widely accepted surface resistivity test method is ASTM D257. It consists of measuring the resistance (via an ohm meter) between two electrodes applied under load to the surface being tested. Electrodes are used rather than point probes because of the heterogeneous makeup of compounded thermoplastics. Simply touching the surface with a point contact may not give readings consistent with the overall part (readings of this type are often insulative even when the part is actually conductive). It is also important to maintain good contact between the sample and electrodes, which can require considerable pressure. The resistance reading is then converted to resistivity to account for the dimensions of the electrodes which can vary depending on the size and shape of the test samples. Surface resistivity is equal to resistance times the perimeter of the electrodes divided by the gap distance, yielding ohms/square. Volume ResistivityVolume resistivity is useful for evaluating the relative dispersion of a conductive additive throughout the polymer matrix. It can roughly be related to EMI/RFI shielding effectiveness in certain conductive fillers. Volume resistivity is tested in a similar fashion to surface resistivity, however electrodes are placed on opposite faces of a test sample. ASTM D257 also refers to volume resistivity, and a conversion factor again based on electrode dimensions and part thickness is used to obtain the resistivity value from a resistance reading. [Volume resistivity is equal to resistance times the surface area (cm2) divided by the thickness of the part (cm) yielding ohm-cm.] ESD Awareness SymbolsESD Susceptibility The ESD susceptibility symbol incorporates a reaching hand in a triangle with a slash through it and is used to indicate that an electrical or electronic device or assembly is susceptible to damage from an ESD event. Used to identify ESDS [ESD sensitive items] and that personnel should be grounding when unpackaging or handling that item. It is also referred to as the ESD sensitivity symbol or ESD warning symbol. The symbol is a reaching hand with defined fingers and fingernail, in a contrasting triangle with a slash in front of the hand. ESD Protective The ESD protective symbol differs from the ESD susceptibility symbol, by the addition of an arc around the outside of the triangle and the omission of the slash across the hand and the triangle. The ESD protective symbol should be used to identify items that are specifically designed to provide ESD protection for ESDS items. Examples of these are packaging, ESD protective clothing and personnel grounding equipment. The ESD protective symbol should also be used on items designed to replace static generative materials. Examples of these items are ESD protective work station equipment, trash can liners, and chairs. The item is to be ESD protective or non-static generative by design. ESD Common Point Ground This symbol is established to indicate an ESD common point ground, which is defined by ANSI/ESD-S6.1 as "a grounded device where two or more conductors are bonded." This symbol consists of a bold outer circle inside of which are the words, ESD COMMON POINT GROUND, in bold type. Inside that are two thick contrasting circles and one thick circle that may fill the center or extend to the center where a snap, plug or other fastener may be connected.
|
|||||||||||||||||||||||||||||||||||||||||||||
